Fitting Guide - BTS Angle Adjustment for Optimal Setup
The Fitting Guide - BTS Angle Adjustment for Optimal Setup is a comprehensive resource designed to help users understand how to properly adjust the angle of their BTS systems. Getting the angle right can significantly enhance your product's performance and aerodynamics.
Why Angle Adjustment Matters
Angle adjustment is crucial for optimizing aerodynamics. When your BTS is not set to a horizontal position, it can result in unfavorable airflow patterns, which could lead to decreased efficiency. By following the Fitting Guide - BTS Angle Adjustment for Optimal Setup, you can ensure that your setup meets the necessary specifications for optimal performance.
By utilizing the information in the Fitting Guide - BTS Angle Adjustment for Optimal Setup, you will be equipped to make the necessary adjustments with confidence. Proper angle adjustments lead to improved functionality and performance, ensuring your BTS system operates at its best.
What You'll Need
- 2.5mm & 5mm Hex Keys (Allen Keys)
- Your AS BTS
Step 1: Loosen M6 Screw

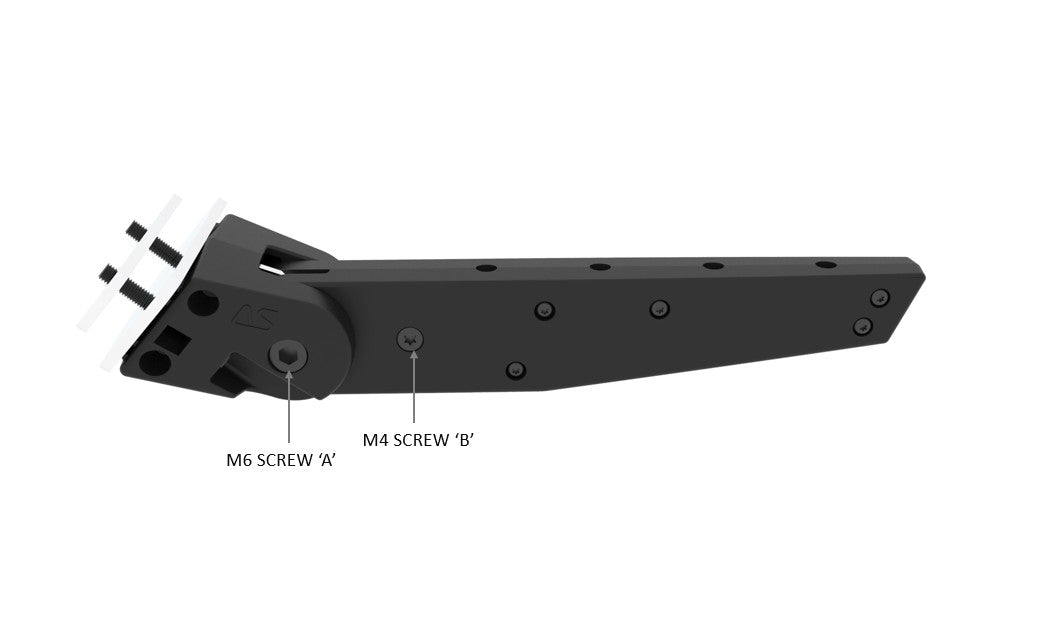

Loosen M6 Screw 'A' with 5mm Allen Key
Step 2: Remove M4 Screw
Completely remove M4 Screw with 2.5mm Allen Key

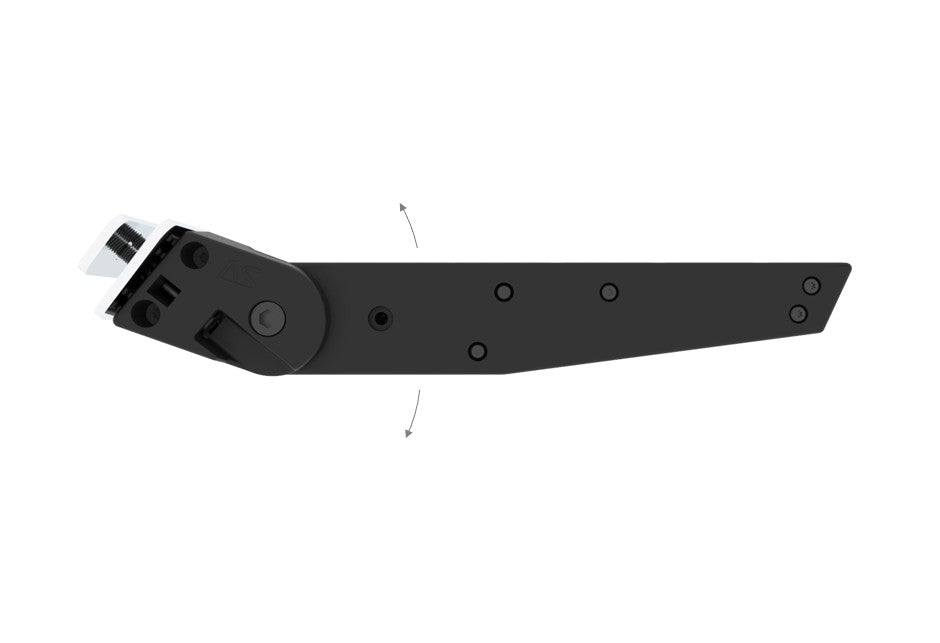

Step 3: Adjust Angle

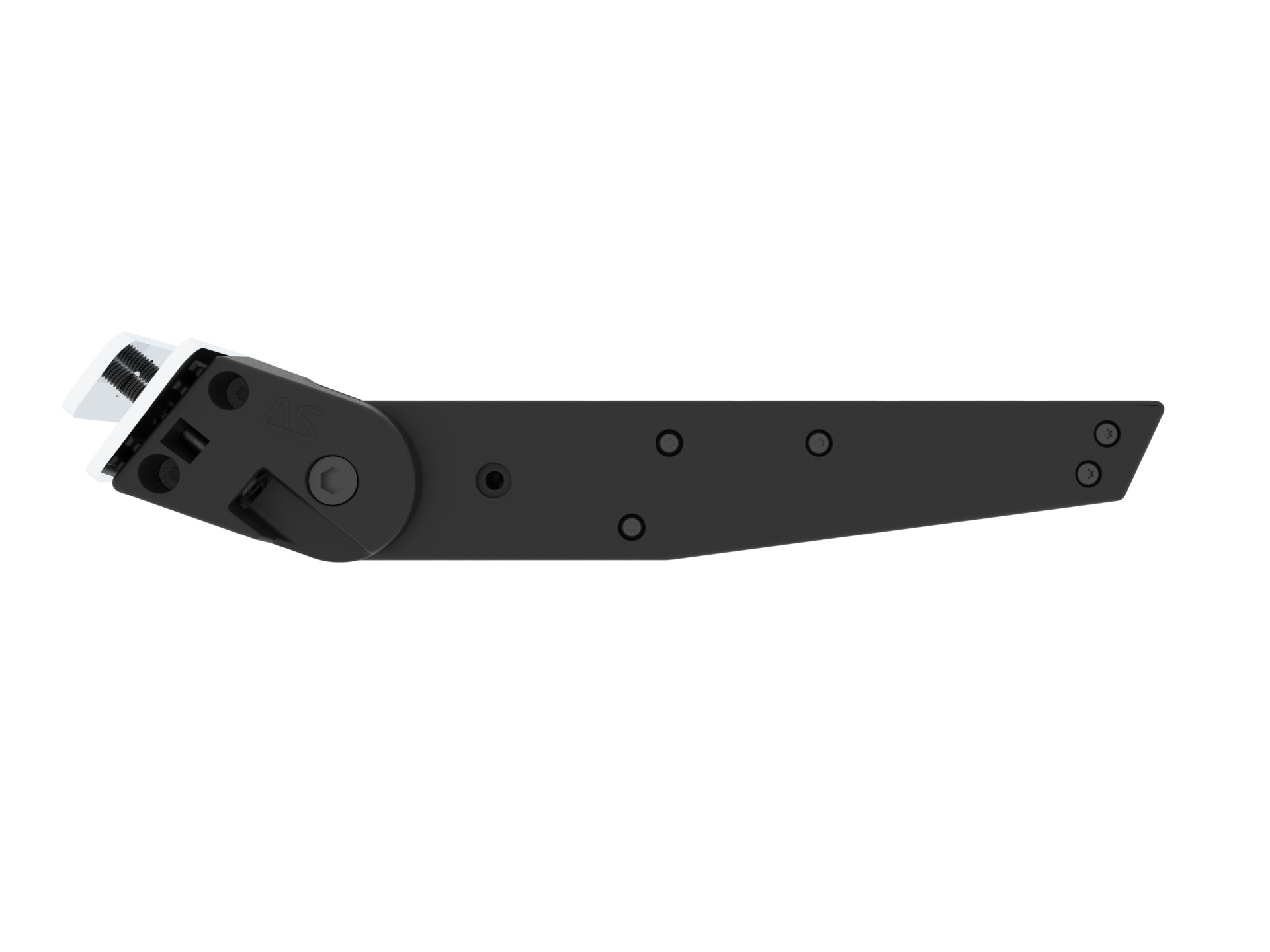

There are three angles available to choose from (in 5 degree increments). Select the desired angle and then re-insert the M4 screw in place and re-tighten all the screws. (Recommended Torque: M6 screw to 2Nm, M4 screw to 1Nm)
